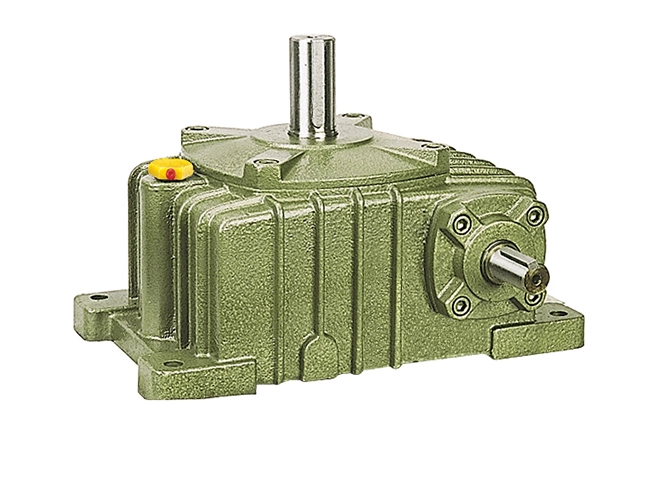

WP Series Worm Gear Reducers | Right-Angle Compact Speed Reducers

1. The housing is a single unit, with an attractive appearance and high rigidity.

2. Housing types include basic type (vertical or horizontal with base plates) and universal type (rectangular housing with fixing screw holes on multiple sides, available with or without base plates).

3. Input shaft connection methods include basic type (single input shaft and double input shaft) and type with motor flange.

4. Output shaft structures include basic type (single output shaft and double output shaft) and type with hollow output shaft.

5. Output and input shaft positions include input shaft at the bottom or top; output shaft upward or downward; input shaft upward or downward.

6. Two or three reducers can be used to form a multi-stage reducer to achieve a very high transmission ratio.

• Output Torque: 28-3030 Nm
• Input Type: Basic type (single input shaft), with IEC motor flange
• Output Type: Solid shaft output, hollow shaft output
• Reduction Ratio: 10-60 (single-pole), double-pole combination speed ratio up to -3600
• Rated Power: 0.06-15 kW
• Enclosure Type: Enclosure types include basic type (input shaft at the bottom, input shaft at the top, output shaft at the top, output shaft at the bottom) and universal type (rectangular enclosure with fixing screws on multiple sides, with or without a base plate, etc.)
