Cycloidal pin wheel precision reducers RV-40/63/90, Ratio 1:30

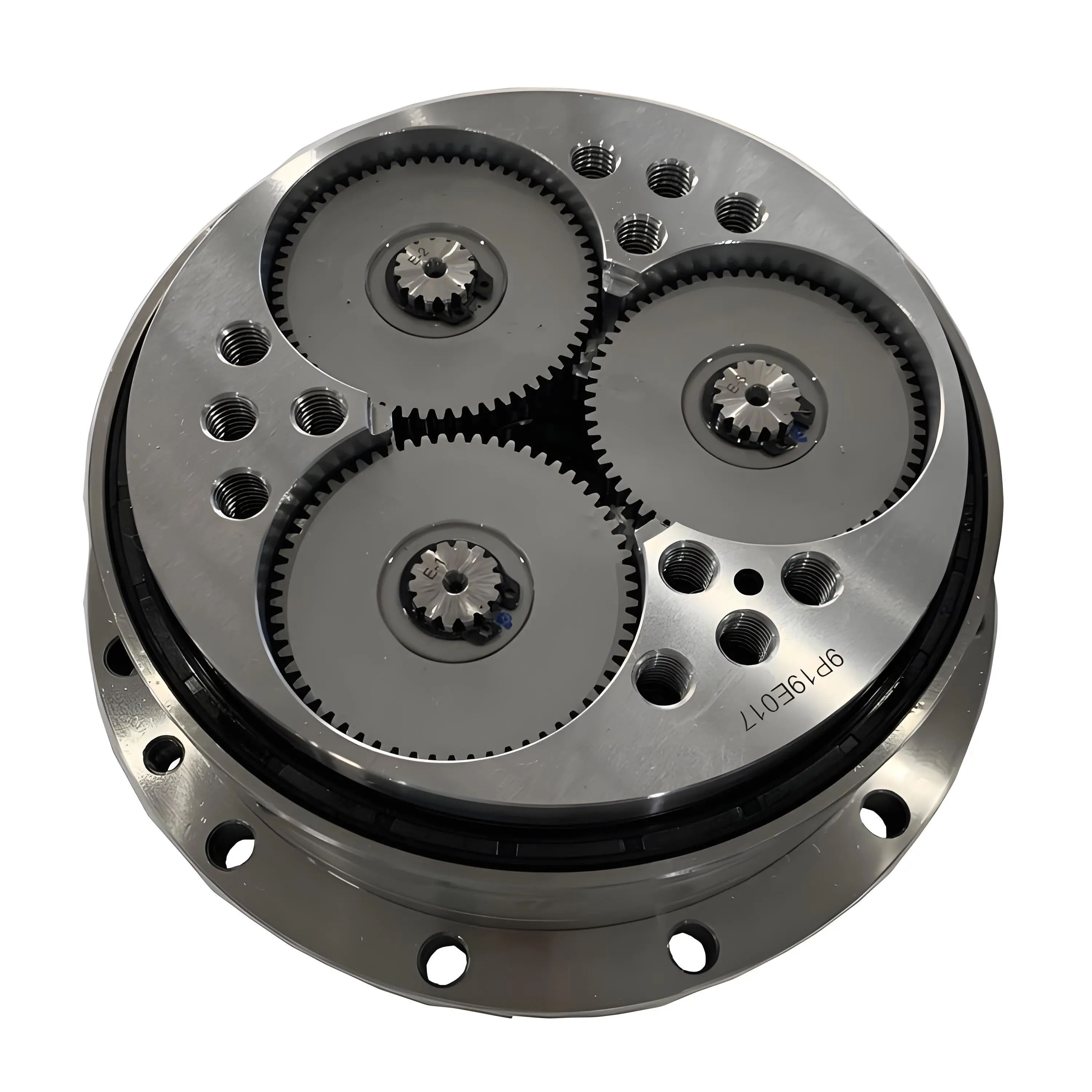

The RV precision cycloidal pin reducer has a relatively compact and sophisticated structure, mainly consisting of six key components: input shaft, eccentric sleeve, cycloidal gear, pin gear housing, output mechanism (RV gear or output shaft), and support bearings. Each component cooperates closely to realize the functions of speed reduction and torque amplification.

The working principle of the RV precision cycloidal pin reducer is based on the meshing transmission between the cycloidal gear and the pin gear, combined with the conversion of motion forms by the eccentric mechanism and the output mechanism. The specific working process can be divided into the following three steps:

1. Motion Conversion by Eccentric Sleeve: When the input shaft rotates under the drive of the power source, the two eccentric sleeves with a phase difference of 180° installed on the input shaft also rotate synchronously. Due to the eccentricity of the eccentric sleeve, it pushes the two cycloidal gears meshed with it to perform reciprocating swing motion. The phase difference of 180° between the two eccentric sleeves ensures that the centrifugal forces generated by the swing of the two cycloidal gears cancel each other out, reducing the vibration of the reducer during operation.
2. Speed Reduction by Meshing of Cycloidal Gear and Pin Gear: The cycloidal gear swings under the drive of the eccentric sleeve, and its tooth profile meshes with the pin teeth on the pin gear housing. Since the number of pin teeth on the pin gear housing is more than the number of teeth on the cycloidal gear, when the cycloidal gear swings once, it will rotate a certain angle relative to the pin gear housing in the opposite direction of the input shaft rotation. This meshing motion realizes the primary speed reduction, and the reduction ratio is closely related to the number of teeth of the cycloidal gear and the pin gear.
3. Power Output by Output Mechanism: The cycloidal gear is connected to the output mechanism through the pin shaft or roller. When the cycloidal gear performs the combined motion of swing and rotation, it drives the output mechanism to rotate uniformly through the pin shaft or roller. Finally, the output mechanism outputs the reduced-speed rotational motion and amplified torque to the working machine, completing the entire transmission process.

Compared with other types of reducers (such as harmonic reducers, planetary reducers), the RV precision cycloidal pin reducer has unique advantages, which make it widely used in high-precision and heavy-load application scenarios. Its core features are as follows:

• Ultra-High Transmission Precision: The RV precision cycloidal pin reducer adopts a multi-tooth meshing structure (more than 30% of the teeth are meshed at the same time), which can average the tooth profile error and cumulative error, greatly improving the transmission precision. The repeat positioning accuracy can reach ±1 arc second, and the backlash is extremely small (usually less than 1 arc minute), which can meet the high-precision positioning requirements of equipment such as industrial robots.
• Strong Load-Bearing Capacity: The multi-tooth meshing method makes the load evenly distributed on each meshing tooth, reducing the stress on a single tooth. At the same time, the RV gear structure in the output mechanism has high rigidity and can bear large radial and axial loads. Under the same volume, the torque capacity of the RV precision cycloidal pin reducer is much higher than that of the harmonic reducer, making it suitable for heavy-load transmission scenarios.
• High Transmission Efficiency: The meshing between the cycloidal gear and the pin gear is rolling meshing with small sliding friction, which reduces the power loss caused by friction. The transmission efficiency of the RV precision cycloidal pin reducer can reach more than 95%, which is higher than that of many traditional reducers. It can save energy and improve the overall efficiency of the equipment.
• Excellent Stability and Low Vibration: The two cycloidal gears with a phase difference of 180° offset each other's centrifugal force during operation, reducing the vibration and noise of the reducer. At the same time, the high-rigidity structure of the pin gear housing and the output mechanism ensures the stability of the reducer during high-speed operation, and the service life is long (usually up to 10,000 hours or more).
• Compact Structure and Small Volume: The RV precision cycloidal pin reducer integrates the functions of cycloidal transmission and planetary transmission into one, with a compact structure and small volume under the same torque capacity. It is easy to install in equipment with limited space, such as the joints of industrial robots.
• Strong Environmental Adaptability: The reducer is made of high-strength alloy steel and undergoes strict heat treatment and precision processing. It has good wear resistance, corrosion resistance and high-temperature resistance. It can work stably in harsh environments such as high temperature, humidity and dust, and is widely used in aerospace, marine and other fields.
• Standardized Structure and Good Interchangeability: Main parameters such as center distance and nominal transmission ratio are optimally designed and produced in accordance with unified national standards. The core components have good interchangeability, which is convenient for later maintenance and spare parts replacement, reducing equipment operation and maintenance costs.
• Compact Structure and Wide Adaptability: Adopting a parallel shaft transmission layout, the structure is compact, with small volume and light weight under the same torque capacity, which is convenient for installation in various industrial equipment; it can adapt to working conditions where the input speed is not greater than 1500 r/min, the circumferential speed of gear transmission is not greater than 20 m/s, the working environment temperature range is -40℃~45℃, and it supports operation in both positive and negative directions.

Due to its ultra-high precision, strong load-bearing capacity and excellent stability, the RV precision cycloidal pin reducer has become a core component in many high-end equipment fields. Its main application fields are as follows:
