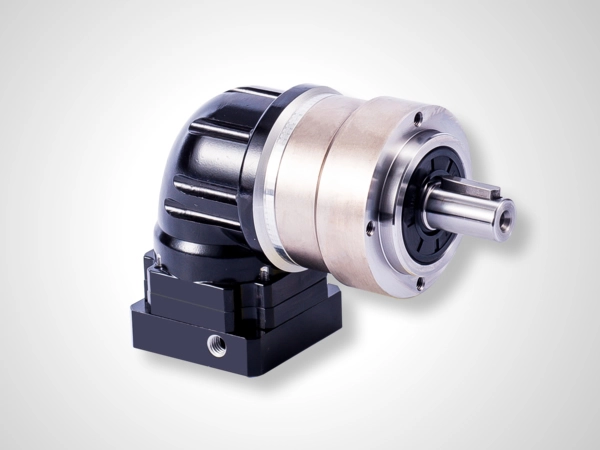

Precision planetary reducers 10mm bore, 5:1 ratio
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Product description
Structural Composition
The main components are a sun gear, planetary gears, internal gear ring, external gear ring, support bearings, and a lubrication system. The sun gear acts as the input shaft, receiving high-speed rotational power from the motor. The planetary gears mesh with the sun gear, transmitting power to the internal gear ring. The internal gear ring then meshes with the external gear ring, which connects to the working machine, transmitting power to it. The support bearings support the components, and the lubrication system lubricates and reduces friction.
Working Principle
When the motor drives the sun gear to rotate, due to the meshing relationship of the planetary gears, the planetary gears rotate around the sun gear and simultaneously revolve along the inner side of the planet carrier. This rotational and revolve motion superimposes to form a complex motion trajectory, transmitting torque to the internal gear ring. The internal gear ring receives the torque and outputs it to the external mechanism, achieving the purpose of deceleration and power transmission.
Features
High Precision: Single-stage precision can be within 1 minute, ensuring the accuracy of the transmission system.
High Transmission Efficiency: Single-stage transmission efficiency is 97%-98%, effectively reducing energy loss.
High torque-to-volume ratio: Compact structure, providing high torque within a small volume.
Lifetime maintenance-free: Typically fully sealed, requiring no lubrication, resulting in a long service life.
Classification
By output direction: Linear and right-angle types.
By number of stages: Single-stage, two-stage, three-stage, etc., miniature planetary reducers can reach five stages.
By precision: Standard precision, high precision, and ultra-precision grades.
Product Application
Applications: Widely used in CNC machine tools, robots, printing equipment, aerospace, electronics, and other applications requiring speed and torque control, improving equipment precision, efficiency, and reliability.
