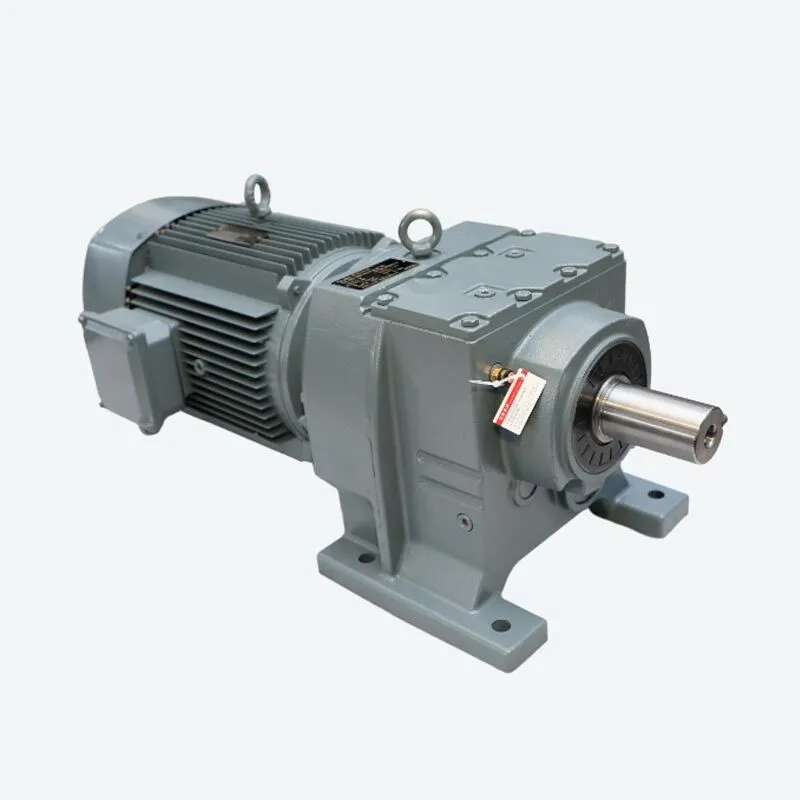

High Efficiency R Series Helical Gearmotors | Optimized for Continuous Duty Operation
Energy-efficient: individually configurable helical gear unit with motor.
Our helical gearmotors of the series R are universal all-rounders for many of your application areas. With their high efficiency, they are ideally suited for a multitude of applications. Thanks to our consistent modular system, the helical gearmotors of the series R offer you many combination options. Regardless of the helical gearmotor design you finally decide on: You are always getting an optimum ratio between performance and intelligent use of space. Especially when you are looking for a space-saving drive solution.
Even at the level of energy efficiency, the gearmotors of the series R offer you excellent product characteristics. This is particularly true for the AC asynchronous motors of the sophisticated efficiency classes IE3 and IE4. Make use of this high energy efficiency in your applications. The helical gearmotors of the series R come in either a foot or flange-mounted design making a range of assembly options possible.
Feature
• 15 sizes
• Optimum ratio between performance and space requirements
• Finally stepped sizes and gear ratios
• Also available with reduced backlash
Product Details
|
Sizes |
07 / 17 / 27 / 37 / 47 / 57 / 67 / 77 / 87 / 97 / 107 / 127 / 137 / 147 / 167 |
|
|
Gear unit ratio |
i |
3.21 – 289.74 |
|
Double gear unit reduction ratio |
i |
90 – 27 001 |
|
Max. output torque R07 – R167 |
Nm |
50 – 20 000* |
|
Motor power range (Mounting via AM motor adapter) |
kW |
0.12 – 90 |
